One vulnerable cloud workload should not give an attacker a clear path to every database, application, backup system, and administrative tool in an environment.

Yet that can happen when a cloud network is flat, overly connected, or protected by broad firewall rules.

Network segmentation in cloud computing addresses this problem by dividing cloud infrastructure into smaller security zones and controlling the traffic that moves between them.

For a broader introduction to cloud network security, firewalls, VPCs, subnets, ingress, egress, and segmentation controls, read the main pillar guide: Cloud Network Security and Segmentation: A Beginner's Guide to Protecting Cloud Environments.

This beginner’s guide explains what network segmentation is, how it works, its main benefits and types, and how organizations can apply network segmentation best practices across modern cloud environments

What Is Network Segmentation in Cloud Computing?

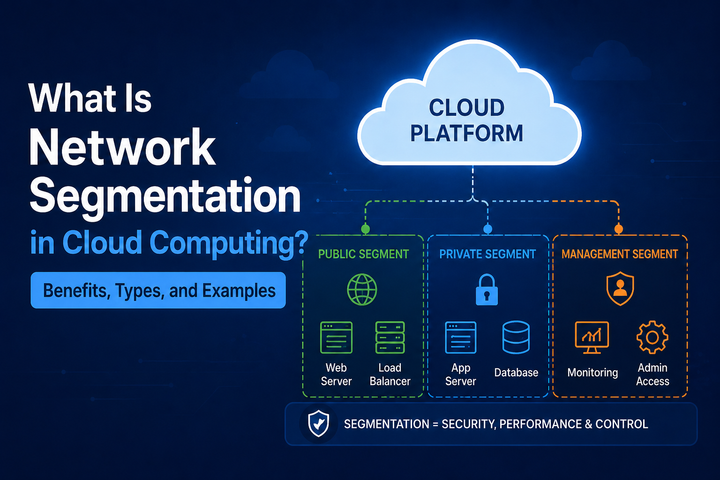

Network segmentation in cloud computing is the process of dividing a cloud network into smaller, controlled areas and restricting communication between them.

Each segment may contain workloads with a similar purpose, sensitivity level, application role, or trust requirement.

For example, an organization could create separate security zones for:

• Public web servers
• Internal application services
• Customer databases
• Development workloads
• Production systems
• Administrative tools
• Security monitoring platforms

Firewall rules, security groups, network access control lists, routing policies, and identity-based controls determine which connections are allowed between these zones.

Without segmentation, workloads may communicate more broadly than necessary. With segmentation, each system receives access only to the applications and services it genuinely needs.

A Simple Network Segmentation Example

Consider an online store with three application tiers:

1. A public website
2. An internal application service
3. A customer database

Customers need to reach the website through approved ingress traffic. The website needs to communicate with the application tier. The application tier requires limited access to the database.

The public website should not connect directly to the customer database.

This application segmentation reduces exposure. If the website is compromised, the attacker does not automatically receive a direct route to customer records.

The Cloud Network Security and Segmentation Basics course provides a structured introduction to VPCs, subnets, firewalls, traffic flows, workload isolation, microsegmentation, monitoring, and network governance.

Why Is Network Segmentation Important?

Cloud environments are dynamic and highly connected.

Teams can create virtual machines, containers, databases, APIs, and testing environments quickly. Without a clear network segmentation strategy, temporary connections and broad access rules can gradually create a flat network.

That increases the risk that one compromised resource could provide access to other applications, systems, or sensitive information.

It Limits Lateral Movement

Lateral movement occurs when an attacker uses one compromised system to reach other resources inside an environment.

Segmentation creates barriers between workloads. An attacker who compromises a public web server may still be unable to connect to a payment database, identity platform, backup system, or administrative tool.

It Reduces the Attack Surface

Attack surface reduction means removing unnecessary ways for users, applications, or attackers to reach a resource.

A database that accepts traffic only from one approved application is less exposed than a database reachable from every workload in the virtual network.

It Supports Breach Containment

Segmentation cannot guarantee that a breach will never happen.

It can help contain an incident within a smaller part of the environment, giving security teams more time to detect suspicious activity, isolate affected workloads, and prevent further damage.

It Improves Network Visibility

Clear segments make expected communication easier to understand.

Cloud network monitoring can then identify:

• Unexpected east-west traffic
• Repeated denied connections
• Unusual ingress or egress traffic
• Connections between unrelated applications
• Changes to firewall rules
• Attempts to cross trust zones

It Supports Governance and Compliance

Organizations often need stronger controls around systems that process sensitive or regulated information.

Segmentation can separate these workloads from general-purpose systems and make cloud access control, monitoring, security assessment, and audit activities easier to manage.

How Cloud Network Segmentation Works

Cloud network segmentation uses several layers of cloud security controls rather than relying on one technology.

Virtual Networks and Subnetting

A virtual private cloud or virtual network creates a logically isolated networking environment.

Subnetting divides that environment into smaller address ranges. Common designs include:

• Public and private subnets
• Production and development subnets
• Web, application, and database subnets
• Management and monitoring subnets

Subnets create structure, but subnetting alone does not enforce complete network isolation. Security policies must control the traffic moving between them.

Security Groups

Security groups apply firewall-like rules to virtual machines, network interfaces, load balancers, and other supported resources.

Rules commonly evaluate:

• Source
• Destination
• Port
• Protocol
• Traffic direction

AWS security groups are stateful controls associated with supported resources. Azure Network Security Groups filter inbound and outbound traffic, while Azure Application Security Groups let teams group resources according to their application role.

Network Access Control Lists

A network access control list, or network ACL, controls traffic at a broader network or subnet boundary.

In AWS, network ACLs can allow or deny inbound and outbound subnet traffic. They are stateless, meaning that return traffic must also be permitted by the relevant rules. AWS security groups are stateful.

Network ACLs can provide an additional security layer, but complicated rules can be difficult to manage.

Cloud Firewalls

A virtual firewall can provide centralized traffic inspection and policy enforcement.

Cloud firewall services may support several layers of traffic inspection and policy enforcement. For a detailed explanation, read Cloud Firewall Explained: How It Protects Cloud Networks, Workloads, and Data.

• Stateful filtering
• Application-aware rules
• Threat intelligence
• Intrusion detection
• Domain-based controls
• Central policy management

Google Cloud firewall policies can apply granular controls using secure tags, including traffic rules that support workload-level microsegmentation.

Network Flow Logs

Network flow logs record information about permitted and rejected traffic.

VPC Flow Logs can help teams investigate unexpected communication and identify security groups or network ACLs that may be too restrictive or too permissive.

Flow logs provide visibility, but organizations must still retain, analyze, and connect them to meaningful alerts.

Types of Network Segmentation

Organizations can combine several types of network segmentation within the same cloud security architecture.

Environment Segmentation

Environment segmentation separates development, testing, staging, and production systems.

A development workload should not have unrestricted access to production data simply because both environments belong to the same organization.

Application Segmentation

Application segmentation creates boundaries between application tiers or separate business applications.

For example, an HR application should not automatically communicate with a payment platform or customer database.

Workload Segmentation

Workload segmentation applies restrictions to individual workloads or small groups of workloads.

This is useful for virtual machines, containers, microservices, and serverless applications that may share a larger cloud network.

Data-Based Segmentation

Resources can be separated according to the sensitivity of the data they process.

Systems containing payment information, credentials, health records, or confidential business data may require stricter firewall segmentation, monitoring, and access controls.

Hybrid and Multi-Cloud Segmentation

Hybrid cloud security requires boundaries between cloud services, on-premises networks, remote users, and third-party environments.

Multi-cloud security adds complexity because AWS, Azure, and Google Cloud use different policy structures and terminology.

Organizations need one overall network segmentation policy supported by provider-specific implementation standards.

Network Segmentation vs Network Isolation

Network segmentation and network isolation are related, but they provide different levels of separation.

Network segmentation divides an environment into controlled sections and regulates the traffic between them.

Network isolation creates stronger separation for workloads or environments that should have little or no direct connectivity.

For example, an application database may be segmented from a public web server while still accepting approved connections from the application tier.

A highly sensitive backup vault or administrative environment may be isolated more completely, allowing access only through tightly controlled management paths.

Isolation may involve:

• Separate virtual networks
• Dedicated cloud accounts or subscriptions
• Private connectivity
• Restricted routing
• Stronger identity controls
• Limited administrative access

Segmentation is appropriate when systems need controlled communication. Isolation is more suitable when risk requires greater separation.

Effective segmentation combines subnets, firewalls, security groups, network ACLs, flow logs, microsegmentation, and zero-trust principles within one practical security framework.

Real-World Example of Cloud Network Segmentation

Consider an online retailer operating in the cloud.

Its environment includes:

• A public website
• Application services
• A customer database
• A payment platform
• Inventory systems
• Administrative tools
• Security monitoring systems

Without segmentation, these resources may be connected too broadly.

If an attacker compromises the public website, they may attempt to move toward payment services, customer records, administrative interfaces, or backups.

A segmented architecture creates clearer boundaries.

The public website receives internet traffic but cannot connect directly to the customer database. The application layer can query the database only through approved ports. The payment platform operates within a more restricted trust zone.

Administrative tools require private access and strong authentication. Monitoring systems collect traffic and security events without exposing management functions to ordinary workloads.

Even when attackers compromise one resource, additional barriers make further movement more difficult.

Network Segmentation Best Practices

1. Map Required Traffic First

Create a network segmentation diagram showing:

• Workloads
• Data stores
• Users
• External services
• Ingress points
• Egress destinations
• Required east-west traffic

For each connection, document its business purpose, owner, protocol, and port.

2. Deny Unnecessary Communication

Avoid broad rules that allow all internal traffic.

Permit only the communication required for approved applications and operational processes.

3. Separate Public and Private Systems

Keep databases, management tools, backup platforms, and internal applications on private networks wherever practical.

Only public-facing services should accept direct internet traffic.

4. Control Egress Traffic

Segmentation is not only about inbound access.

Unrestricted egress traffic can allow compromised workloads to contact malicious systems, download tools, or transfer stolen information.

5. Use Identity and Context

IP addresses can change when cloud workloads scale or move.

Where supported, combine firewall rules with workload identities, service accounts, application security groups, secure tags, and other policy-based attributes.

6. Monitor Traffic Between Segments

Use flow logs, firewall logs, and security alerts to identify:

• New connections between trust zones
• Repeated denied access
• Large data transfers
• Unusual external destinations
• Security-group changes
• Disabled monitoring

7. Automate Policy Checks

Network segmentation tools can help detect cloud misconfiguration, including:

• Open management ports
• Broad source ranges
• Unrestricted egress
• Missing flow logs
• Unapproved network peering
• Unused firewall rules

Automation should support clear human ownership rather than replace it.

8. Test Network Isolation

Do not rely only on diagrams or configuration screenshots.

Test whether workloads can reach unauthorized zones. Confirm that blocked traffic generates useful logs and alerts.

9. Review Rules Regularly

Update the network segmentation policy when applications, suppliers, cloud platforms, or business requirements change.

Temporary firewall rules should have named owners and expiration dates.

Microsegmentation and Zero Trust Network Segmentation

Traditional segmentation often separates larger environments, subnets, or application tiers.

Microsegmentation creates more precise boundaries around individual workloads, containers, applications, or services. See Microsegmentation Explained: How It Strengthens Cloud Security and Limits Lateral Movement for a detailed look at workload-level isolation.

For example:

• Traditional segmentation may separate production from development.
• Application segmentation may separate a web tier from a database tier.
• Workload segmentation may restrict communication between individual microservices.
• Zero trust microsegmentation may evaluate identity and context before allowing each connection.

Zero trust network segmentation does not automatically trust a system because it is located inside a private network.

Access decisions may consider:

• User identity
• Workload identity
• Device condition
• Application role
• Requested resource
• Data sensitivity
• Current risk

NIST’s zero-trust guidance states that users and resources should not receive implicit trust based only on their physical or network location.

Segmentation creates boundaries. Zero trust determines who or what may cross those boundaries and under which conditions. Learn more in Zero Trust Network Security in the Cloud: Why Access Must Be Continuously Earned.

Key Takeaways

• Network segmentation divides cloud environments into smaller controlled zones.

• Segmentation limits lateral movement if one workload is compromised.

• Subnets create structure, but firewall rules and access policies enforce security.

• Microsegmentation applies more precise controls around workloads, containers, and services.

• Zero trust segmentation adds identity, context, and risk checks before access is allowed.

• Regular rule reviews, flow logs, and automated checks help keep segmentation effective.

Frequently Asked Questions

What Is the Main Purpose of Network Segmentation?

The main purpose is to limit unnecessary communication between systems.

This reduces attack paths, improves workload isolation, and helps contain compromised resources.

What Is the Difference Between a Subnet and Network Segmentation?

A subnet divides a network’s address space.

Network segmentation is the broader security strategy that uses subnets, firewall rules, security groups, identities, and monitoring to control communication.

Does Network Segmentation Stop Every Cyberattack?

No.

It should be combined with identity security, patching, encryption, secure application development, vulnerability management, monitoring, and incident response.

What Is Zero Trust Network Segmentation?

Zero trust network segmentation allows connections only after evaluating identity, context, risk, and the requested resource.

A workload is not automatically trusted simply because it is located inside a private network.

How Often Should Segmentation Rules Be Reviewed?

Rules should be monitored continuously and formally reviewed at regular intervals.

They should also be reassessed after migrations, architecture changes, application releases, security incidents, and changes in business requirements.

Build Practical Cloud Segmentation Skills

Network segmentation in cloud computing divides complex environments into smaller, controlled security zones.

Subnets create structure. Security groups, network ACLs, and cloud firewalls restrict traffic. Flow logs and cloud network monitoring help teams identify unexpected communication.

Microsegmentation and zero trust provide more precise, identity-aware controls around individual workloads and applications.

Explore the course to build a practical understanding of how cloud segmentation protects workloads and reduces security risk.

Explore the Course → Cloud Network Security and Segmentation Basics
